How to Clone a Laptop SSD Before an Upgrade

If you’re planning a laptop storage upgrade, learning how to clone a laptop SSD can save you from reinstalling Windows, applications, drivers, and personal files from scratch. Instead of starting with a blank drive, cloning creates a copy of your existing system on the replacement SSD, allowing you to move to a larger or faster drive with much of your existing setup intact.

SSD cloning is particularly useful when you’re replacing a nearly full drive, moving from a smaller SSD to a larger NVMe model, or upgrading an older storage device.

This guide walks you through the process step by step.

Important: A clone is not a substitute for a backup. Before starting, create a current backup of important files. Cloning can overwrite the destination drive, so selecting the wrong drive can result in data loss. Macrium specifically describes cloning as a destructive operation because partitions on the destination may be overwritten.

Related articles:

• Ultimate Guide to Laptop Performance
• Free Up Laptop Storage Space

What Does It Mean to Clone a Laptop SSD?

SSD cloning creates a copy of the partitions and data on one storage drive and transfers them directly to another drive.

For example, suppose your laptop currently has a 512GB SSD and you’re upgrading to a 2TB SSD. Instead of reinstalling Windows and your applications, you can clone the existing drive to the new SSD.

The basic process looks like this:

Existing laptop SSD → cloning software → replacement SSD

Depending on your software and configuration, the clone can include:

• Windows
• System partitions
• Applications
• Drivers
• User accounts
• Documents
• Photos and videos
• Settings
• Boot information

Macrium describes a disk clone as complying partitions directly onto the destination drive rather than creating a compressed backup file.

Clone vs Backup: What’s the Difference?

These two concepts are easy to confuse.

A cone is primarily a migration tool, while a backup is primarily a recovery and protection tool.

For an SSD upgrade, cloning can be extremely convenient. For long-term protection, maintain a separate backup.

Why Clone Your SSD Before an Upgrade?

There are several good reasons to clone your existing drive.

1. Avoid reinstalling Windows

A successful clone can preserve your existing Windows installation rather than requiring a fresh installation.

2. Keep You Applications

Programs that are installed on your current drive can move with the clone, eliminating the needs to reinstall everything individually.

3. Preserve Your settings

Your Windows configuration, user profile, and many application settings can remain intact.

4. Upgrade to a Larger SSD

If your laptop has a 512GB drive that’s running out of space, cloning it to a 1TB, 2TB, or larger SSD can provide a straightforward upgrade path.

5. Upgrade to Faster Storage

Moving from an older SSD to a newer, faster SSD can improve storage performance-provide the laptop supports the newer interface and speeds.

What You Need Before Cloning a Laptop SSD

Before starting the actual cloning process, gather everything you’ll need.

Related article:

• When to Replace Your Laptop

1. A Compatible Replacement SSD

The new SSD must be compatible with your laptop.

Depending on your machine, you may need:

• M.2 NVMe SSD
• M.2 SATA SSD
• 2.5-inch SATA SSD
• A specific physical length such as 2280
• A particular interface or protocol

This is why checking compatibility should happen before purchasing the replacement drive.

Suggested products:

• 1TB NVMe SSD
• 2TB NVMe SSD
• SATA SSD

Related article:

• Check Your Laptop SSD Compatibility Before Buying

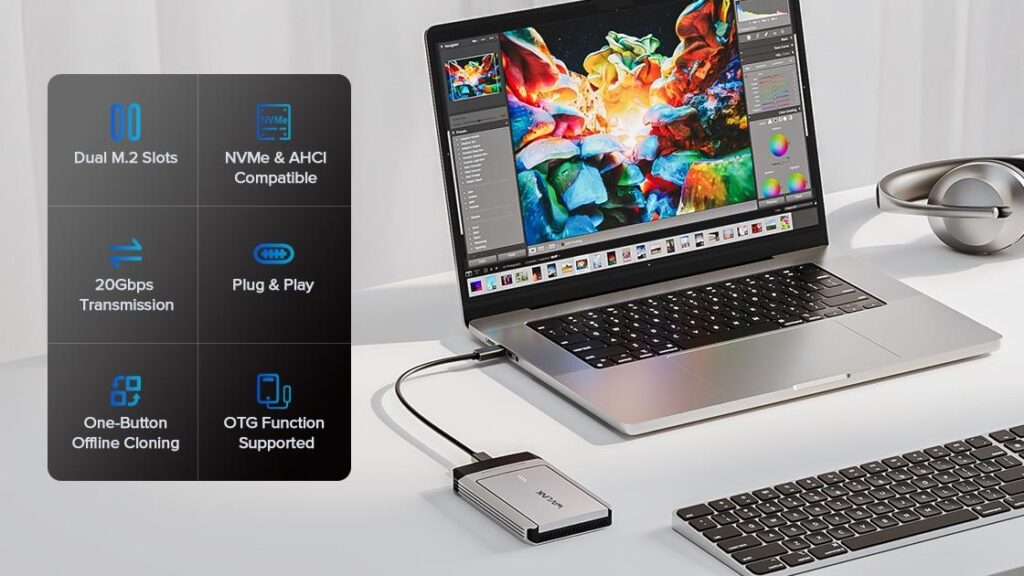

2. A Way to Connect the New SSD

If your laptop has only one internal SSD slot, you’ll need a way to connect the replacement SSD externally.

For an NVMe drive, this typically means using an:

M.2 NVMe-to-USB enclosure

The basic setup becomes:

Laptop → USB cable → NVMe enclosure → replacement SSD

This allows both drives to be accessible simultaneously so the cloning software can copy the source drive to the destination.

Macrium notes that when other source and destination drives cannot be installed internally at the same time, an NVMe-to-USB enclosure can be used to connect the destination drive.

Gear and Code Top Picks:

• USB 3.2/USB4 M.2 NVMe SSD Enclosure
• USB 3.2 Gen 2 Enclosure
• UBS4 NVMe Enclosure

3. SSD Cloning Software

You’ll need software capable of cloning your existing drive.

One established option is Macrium Reflect X, which provides disk-cloning functionality and tools for handling different destination-drive sizes. Macrium’s current documentation also provides specific cloning options and verification features.

Other cloning solutions are available, including manufacturer-specific migration utilities.

4. A Backup of Your Important Data

Before you begin:

Back up your important files.

Don’t rely on the clone as your only safety net.

Back up:

• Documents
• Photos
• Videos
• Work files
• Password databases
• Project files
• Browser data
• Other irreplaceable information

Ideally, keep the backup on a separate physical drive or trusted cloud-storage service.

Compare Reliable External Backup Drives:

• External SSD
• External HDD
• Portable Backup Drive

Step 1: Check Your Existing SSD

Before cloning, identify what is currently installed.

In Windows you can use Disk Management to examine your drives and partitions.

Look for:

• Current drive capacity
• Used space
• System partitions
• Recovery partitions
• Boot partitions
• Windows partition
• Additional data partitions

The most important thing is determining which physical drive contains your Windows installation.

Don’t confuse partitions with physical drives

One physical SSD can contain multiple partitions.

For example:

Physical SSD

• → EFI System Partition
• → Windows C: partition
• → Recovery partition
• → Data partition

When cloning a system drive, you generally want o preserve the parititions necessary for Windows to boot-not simply copy the visible C: drive.

Step 2: Check the Replacement SSD

Before connecting the new drive, verify:

• Capacity
• Interface
• Form factor
• Physical dimensions
• Laptop compatibility
• Available storage space
• Manufacturer specifications

Ideally, the destination SSD should have enough capacity to accommodate the data and partitions you’re cloning.

Important distinction: disk size vs data used

You don;t necessarily need a destination SSD that is larger than the entire capacity of your existing SSD if the cloning software can resize partitions appropriately.

For example:

• Existing SSD: 1TB
• Used data: 350GB
• New SSD: 500GB

A clone may be possible if the partitions can be resized to fit the smaller destination.

However, cloning a larger drive is generally much simpler.

Macrium’s cloning process supports resizing partitions when the destination differs in size from the source.

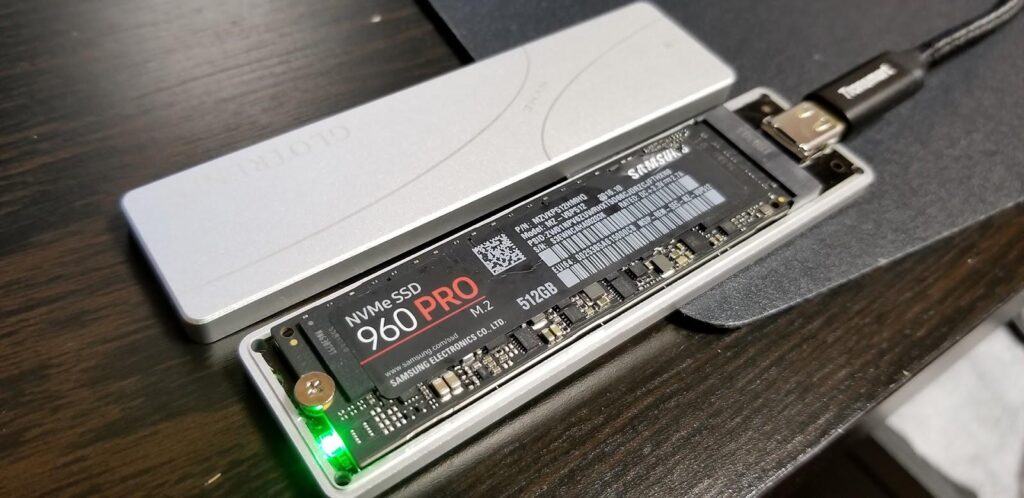

Step 3. Install the New SSD in an External Enclosure

If your laptop has only one internal M.2 slot, install the replacement SSD into a compatible enclosure.

The general process is:

• Open the enclosure
• Insert the M.2 SSD at the appropriate angle
• Secure the SSD
• Close the enclosure
• Connect it to your laptop using USB
• Allow Windows to detect the drive

See Laptop Upgrade Tools:

• Precision Screwdriver Kit
• Laptop pry-tool
• Magnetic Screwdriver set
• Anti-static Wrist Strap
• ESD-Safe Mat
• Laptop Repair Tool Kit

Step 4: Initialize the New SSD if Necessary

When Windows detects a new SSD, it may ask you to initialize it.

Depending on the cloning software and drive configuration, you may need to manually format the destination beforehand.

Don’t start creating partitions unnecessarily.

Your cloning software may handle the destination partition structure itself.

More importantly, make sure you have identified the correct drive.

Never assume that “Disk 1” or “Disk 2” is automatically the new SSD.

Verify the:

• Capacity
• Manufacturer
• Model
• Connection
• Existing data

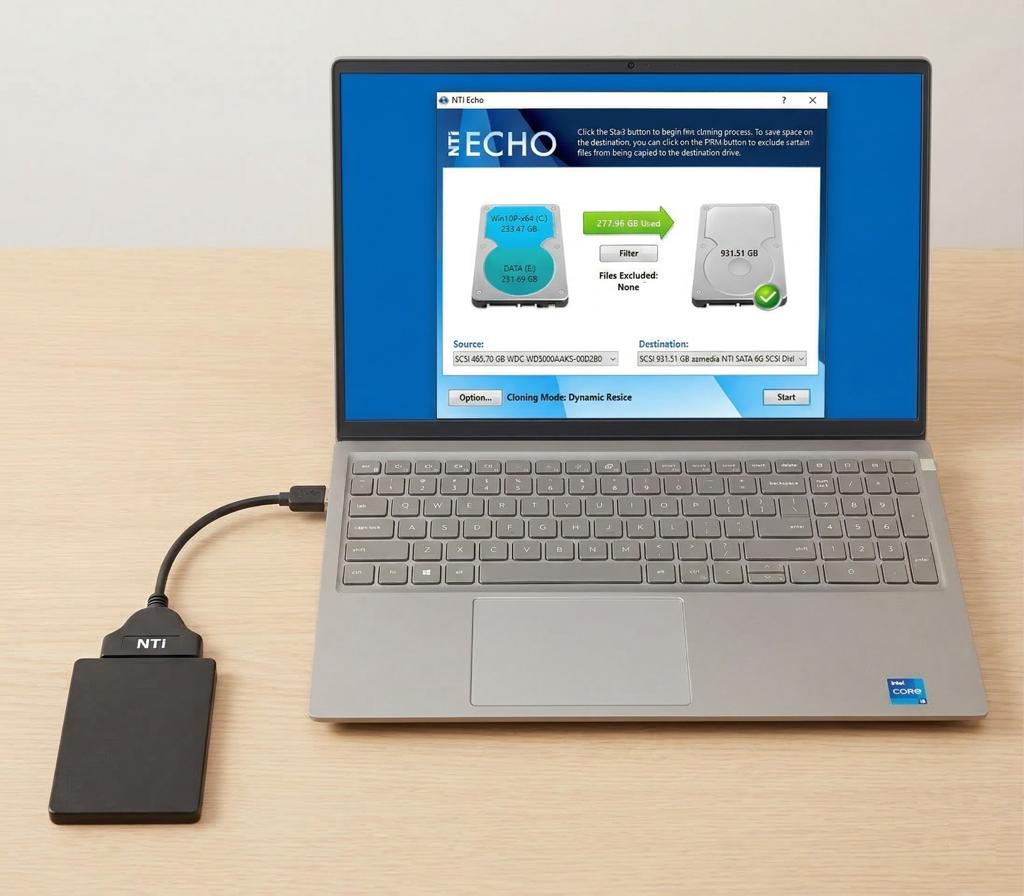

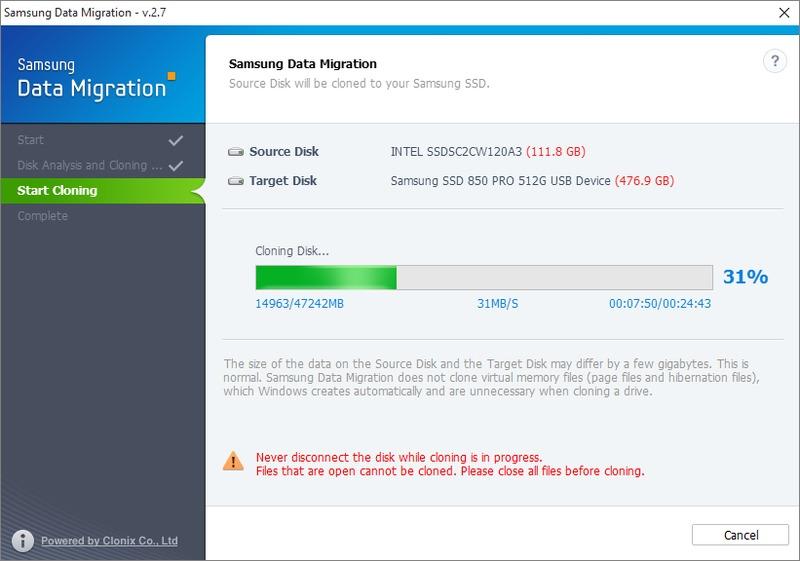

Step 5: Install and Open Your Cloning Software

Launch your chosen cloning application.

The software should display the drives currently connected to your computer.

You’ll typically see something similar to:

You existing laptop SSD

↓

Destination

Your new SSD

The most important decision in the entire process is selecting the correct source and destination.

Step 6: Select the Source SSD

Choose the SSD currently containing your Windows installation.

This is your:

Source Drive

It contains the data you’re trying to copy.

Double check its:

• Capacity
• Model number
• Partition layout
• Used space

If possible, compare the information with what you saw earlier in Windows Disk Management.

Step 7: Select the Destination SSD

Next, select your new SSD.

Destination Drive

Warning: The destination may be erased during cloning.

Macrium explicitly warns that cloning can overwrite partitions on the destination drive.

Before proceeding, ask yourself:

Am I absolutely certain this is the new SSD?

If the destination contains important data, stop and back it up first.

Step 8: Copy the Required Partitions

For a Windows system clone, you generally want to preserve the partitions required for the operating system to boot.

Depending on the system, these may include:

• EFI System Partition
• Microsoft Reserved partition
• Windows partition
• Recovery partition

Don’t blindly select the C: drive.

A bootable Windows installation can depend on additional system partitions.

Step 9: Resize the Partition for the New SSD

If your replacement SSD is larger, you can often expand the Windows partition to take advantage of the additional capacity.

For example:

Old SSD

512GB

↓

New SSD

2TB

You don’t want your new 2TB drive to behave like a 512GB drive simply because the original partition was that size.

Many cloning utilities provide options for expanding partitions during the cloning process. Macrium, for example, provides options to shrink or expand partitions to fit the target drive.

Related article:

• Complete Laptop Upgrade Guide

Step 10: Start the Clone

Once you’ve verified everything, begin the cloning process.

The cloning software will copy the selected partitions from the source SSD to the destination SSD.

The process may take:

• Several minutes
• 30-60 minutes
• Several hours

The time depends on:

• Amount of data
• SSD speed
• USB connection
• Enclosure performance
• Laptop performance
• Cloning software
• Source-drive condition

Don’t disconnect the drives while cloning is underway.

Step 11: Verify the Clone

Don’t immediately remove the original SSD and assume everything worked.

First, verify the destination.

Check that:

• The clone completed successfully
• The destination partitions appear correctly
• The Windows partition contains your files
• The expected capacity is available
• The cloning software reports no errors

Some cloning tools also provide file-system verification options. Macrium’s current documentation describes a verification option that checks the integrity of FAT32 and NTFS file systems.

Test important files

Open a few:

• Documents
• Photos
• Videos
• Projects
• Applications

You want to know that your important data made the trip before changing hardware.

Step 12: Shout Down the Laptop

Once the clone has been verified, completely shut down the laptop.

Don’t simply put it to sleep.

Disconnect:

• AC power if appropriate
• USB devices
• External SSD enclosure

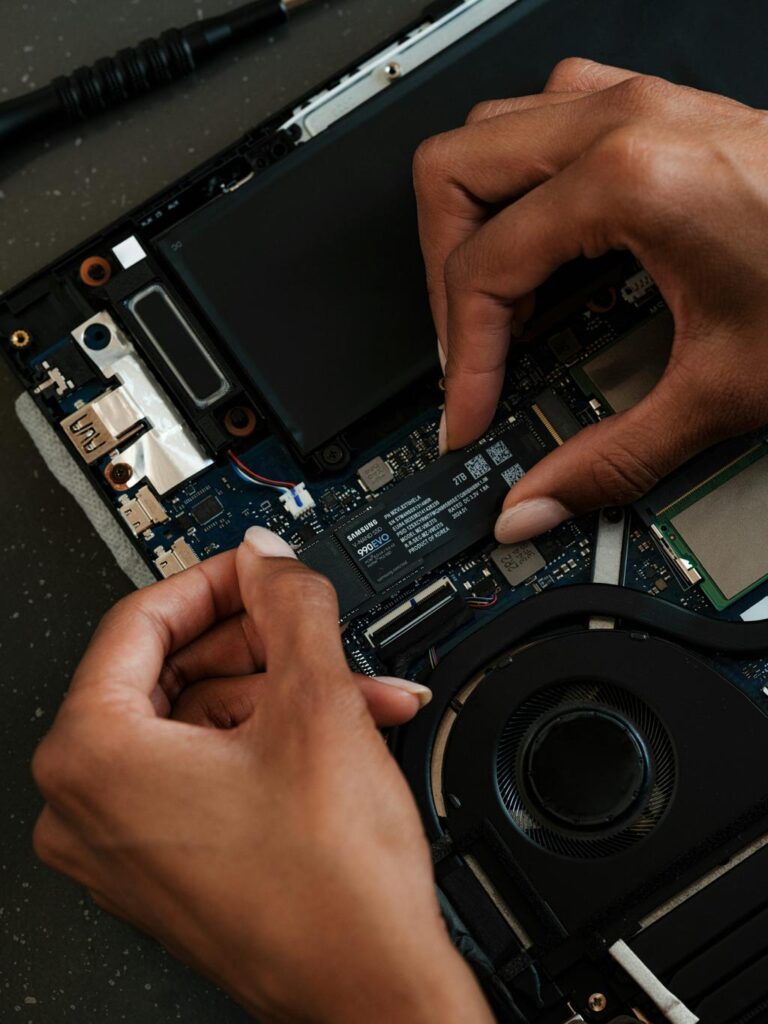

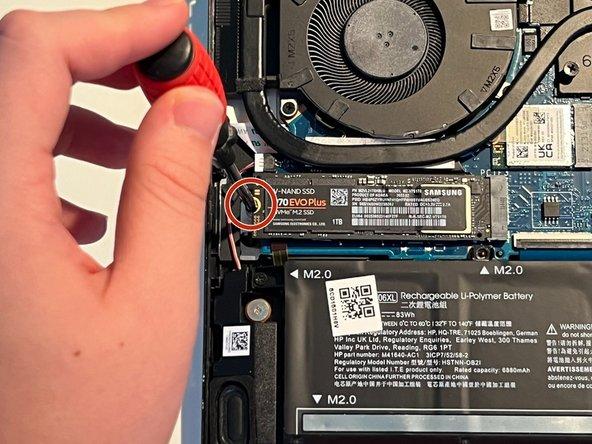

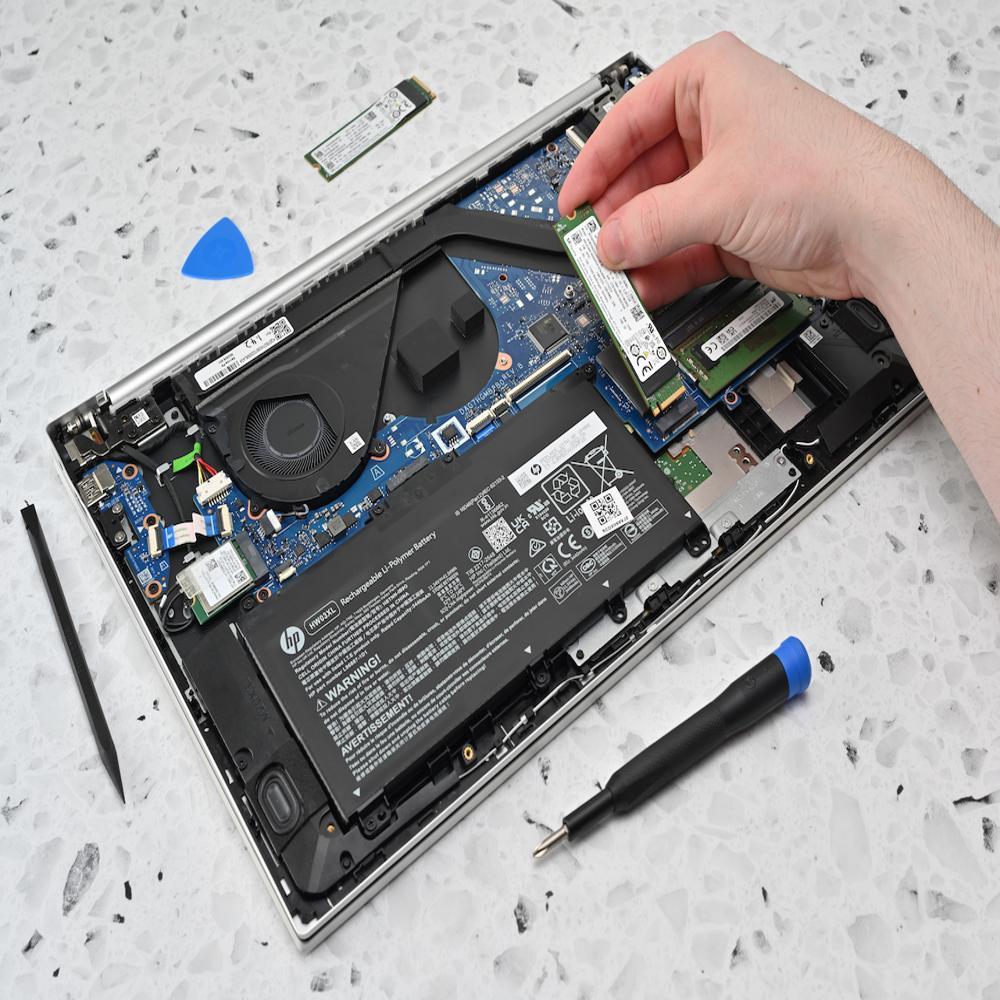

Step 13: Replace the Laptop SSD

Open the laptop according to the manufacturer’s service instructions.

You generally need to:

• Remove the bottom cover
• Disconnect the battery if the manufacturer recommends it
• Locate the existing SSD
• Remove the retaining screw
• Carefully remove the old SSD
• Insert the cloned replacement SSD
• Secure it
• Reassemble the laptop

Step 14: Boot From the New SSD

Turn the laptop on.

Ideally, Windows should boot from the replacement SSD.

If everything worked correctly, you should see essentially the same Windows environment you had before the upgrade.

Check:

• Windows boots normally
• Your desktop appears
• Applications launch
• Files are accessible
• Wi-Fi works
• Audio works
• Display works
• Device Manager shows no unexpected problems

What if the Laptop Doesn’t Boot?

Don’t panic.

A failed boot doesn’t necessarily mean the data is gone.

Possible causes include:

• Incorrect partition selection
• Boot configuration problems
• UEFI/BIOS settings
• Incorrect destination selection
• Encryption-related issues
• Hardware compatibility
• Clone errors

First, reinstall the original SSD if necessary and confirm the original system still works.

If the original SSD boots normally, you have useful fallback while troubleshooting the clone.

Common Laptop SSD Cloning Mistakes

Mistake #1: Not Backing Up Important Files

A clone is not your only safety net.

Create a separate backup first.

Mistake #2: Choosing the Wrong Destination Drive

This is potentially the most serious mistake.

Always verify the drive’s model and capacity before starting.

Mistake #3: Buying an Incompatible SSD

Not every laptop accepts every M.2 SSD.

Check compatibility before purchasing.

Related article:

• How to Check Laptop SSD Compatibility Before Buying

Mistake #4: Forgetting the SSD Enclosure

If your laptop has only one internal drive slot, you’ll need another way to connect the new SSD during cloning.

Mistake #5: Cloning Without Enough Destination Space

Check the amount of data you’re moving and the partition layout before beginning.

Mistake #6: Removing the Original SSSD Too Quickly

Keep the original SSD until you’ve confirmed the new drive boots correctly and your important data is accessible.

This gives you a fallback.

Should You Keep the Old SSD?

Yes-at least temporarily.

Don’t immediately wipe or sell your old SSD.

Keep it until you’ve:

• Successfully booted from the new drive
• Verified important files
• Tested your applications
• Confirmed the laptop is stable
• Created a new backup

Once you’ve confirmed everything works, you can repurpose the old SSD as external storage if the hardware and enclosure support it.

SSD Cloning vs Fresh Windows Installation

Which approach should you use?

If your current Windows installation is healthy and you simply want more storage, cloning is often the more convenient approach.

If the laptop has years of accumulated software, corrupted files, malware concerns, or other problems, a fresh installation may be worth considering.

Final SSD Clone Checklist

Before starting:

• Confirm SSD compatibility
• Purchase the replacement SSD
• Get an appropriate USB enclosure
• Back up important files
• Confirm the source SSD
• Confirm the destination SSD
• Install cloning software

During cloning:

• Select the correct source
• Select the correct destination
• Confirm partition layout
• Resize partitions if necessary
• Start the clone
• Don’t disconnect either drive

After cloning:

• Verify the clone
• Shout down the latop
• Replace the SSD
• Boot the laptop
• Verify Windows
• Tasst applications
• Check important files
• Keep the original SSD until everything is confirmed

Related article:

• Laptop Maintenance Guide
